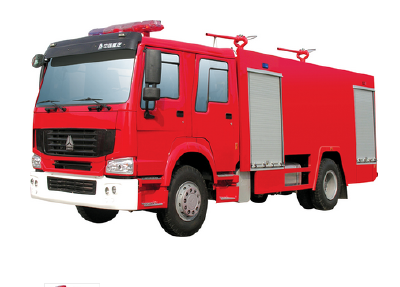

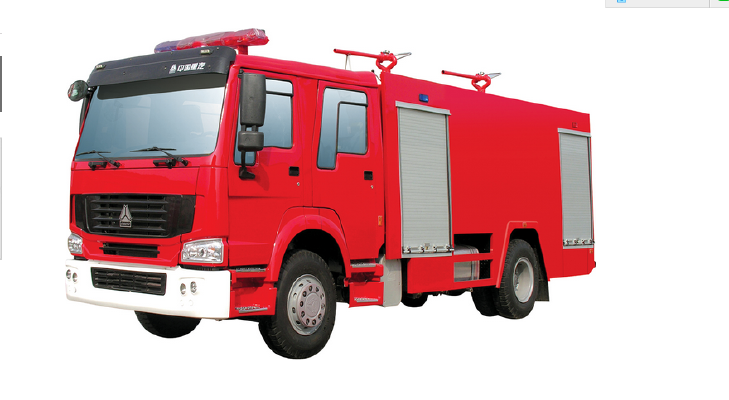

GF40H dry powder fire engines, the Department of Jinan Heavy Duty Truck Ho Lok produced ZZ1167M4617C type II card chassis converted. For the extended cab four-door Crew Cab, top with lights apparatus. A monolithic body, front and rear sides provided with shutter doors, each with an internal high and low nitrogen systems and operational dashboards, can also be used simultaneously two separate extinguishing system; dry powder tank middle into two groups. The top of the body is equipped with two dry powder guns. Car tail lights of a car outside, for night-time operations. Vehicle reasonable layout, ride comfort, centralized operation, easy maintenance, and can be widely used in large and medium cities public security fire brigades, petrochemical, factories and mines and ports, docks and other places extinguish electrical, metal, fire, it is ideal for large-scale fire-fighting equipment .
Vehicle fire performance in line with GB7956 requirements; chassis through national mandatory product certification; engine emissions to meet the requirements (Euro Ⅲ standard) GB17691-2005 the third stage limits; all external interface complies with GB12514-2006 fire interface standard. Vehicle through 3C certification, in line with the relevant provisions on motor vehicle licenses.
Vehicle main parameters:
Dimensions: 8711 × 2500 × 3450mm (L × W × H)
Approach: ≥16 °
Departure angle: ≥11 °
Maximum speed: ≥90km / h
