- Size: 10495 * 2480 * 3850mm
- Place of Origin: SHANDONG LINYI
- Brand Name: TIANHE
- Model Number: GP120/M
- Weight: 32000.000 kg
Product Details

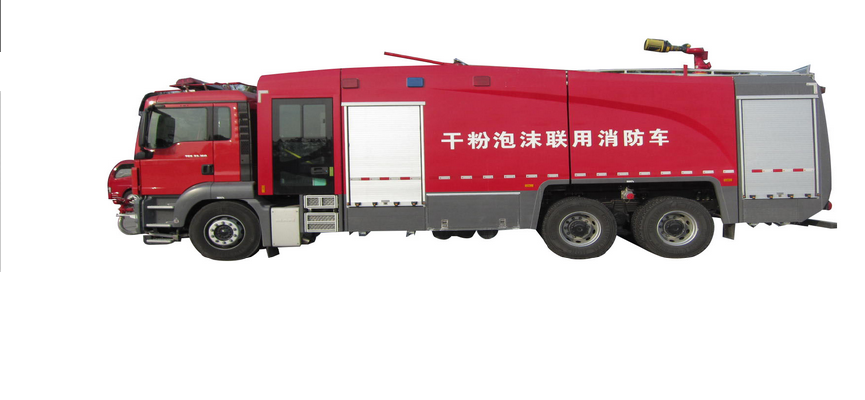

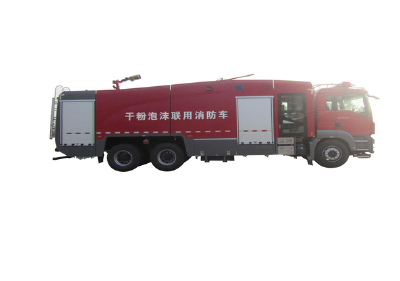

GP120 / M dry powder - foam combined with fire engines, the Department of MAN Nutzfahrzeuge produced the type TGS 33.360 6 × 4 chassis modifications, while the main battle equipment dry powder fire extinguishing systems and foam extinguishing system. Original single-row cab vehicle, with a separate crew compartment, occupant 1 + 1 + 4 people, comfortable ride. The entire amount of liquid vehicle: water 5000kg, Class B foam 4500kg, dry 3000kg; tank made of high-quality 304 stainless steel (0Cr18Ni9). Vehicles equipped with American Hill 8FC100 fire pump rated flow 100L / s; by the United States Elkhart Scorpion RF 8294 RF + SM1250E type gun fire, rated flow 80L / s; using PF40 powder for artillery fire, the effective injection rate 40kg / s. Vehicles smart operating module, enabling one-button fire operations and other functions. The car fire means more powerful, advanced performance and appearance of the atmosphere beautiful, intelligent centralized control is simple; widely used in public security fire brigade and large-scale petrochemical enterprises, large-scale oil and gas fields, oil depots, coal mines, oil tanker docks, airports and other units of full-time fire-fighters It can be used as petrochemical enterprises and fire forces battle vehicles.
Vehicle fire performance in line with GB7956 requirements; chassis through national mandatory product certification; engine meets Euro Ⅳ emission standards; vehicle through 3C certification and included the Ministry of automotive new product announcement.
Overall dimensions 10495 × 2480 × 3850mm
Full quality 32000kg
The amount of the carrier liquid water 5000 kg, Class B foam 4500 kg, dry 3000kg
Powder filling volume 3000kg
Engine rated power 265kw
Maximum speed of 90km / h
