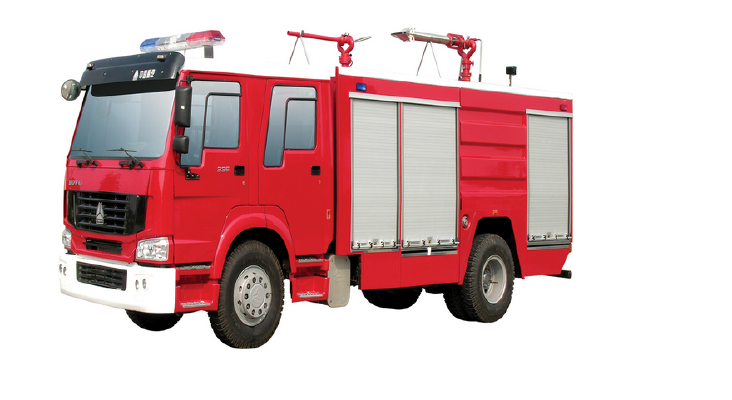

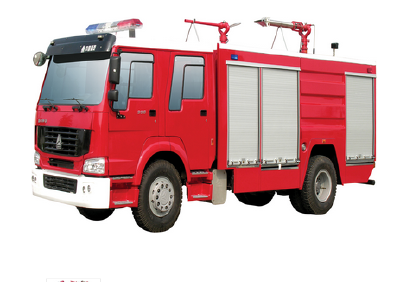

GP60 / H dry type foam combined with fire, the Department of China National Heavy Duty Truck ZZ5207M4617D1 type II truck chassis modified with foam and dry powder fire engines battle system. Double cab vehicles, drivers and passengers can carry 1 + 1 + 4 people, comfortable ride; the entire amount of liquid vehicle is water 3500kg, Class B foam 1000kg, dry 1500 kg, tank made of high-carbon steel. Vehicles equipped with PH48 type manual foam proportioner; CB10 / 60 car fire pump rated flow 60L / s; PL48-64D type manual gun fire, rated flow 48L / s; PF30 gun powder for the effective injection rate 30kg / s . Car than power, containing members more strong overall performance, easy centralized control.
    Vehicle fire performance in line with GB7956 requirements; chassis through national mandatory product certification; engine emissions to meet the requirements (the country Ⅳ standard) GB17691-2005 Phase IV limits; vehicle through 3C certification and included in the Ministry of automotive new product announcement.

Overall dimensions 8260 × 2480 × 3480mm
Full quality 19000kg
The amount of the carrier liquid water 3500kg, Class B foam 1000kg, 1500 kg dry powder
Engine rated power 221kw
Maximum speed of 102km / h (rear axle ratio of 3.36)
State Ⅳ emission standards
