Product Details

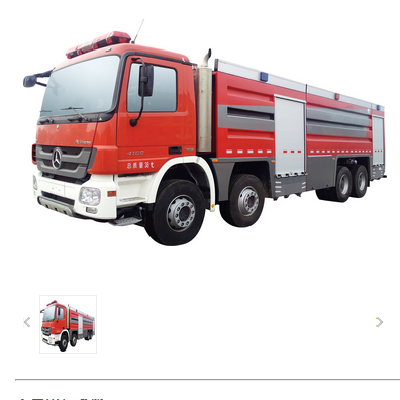

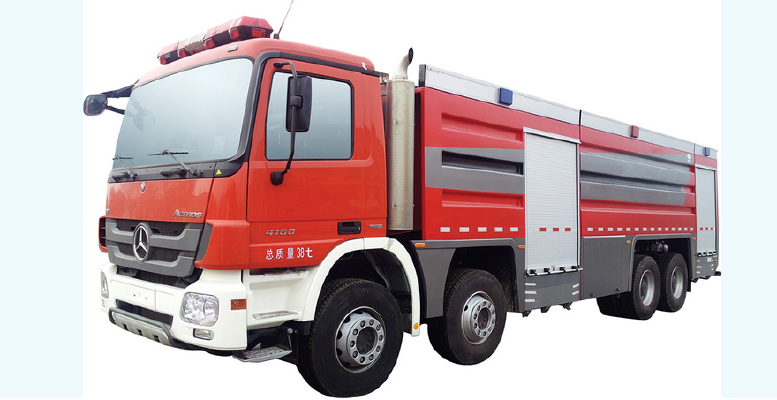

GY200 / B type liquid supply fire truck used Mercedes - Benz ACTROS4160 8 × 4 type II truck chassis modification. Front of the car with a small foam tank, foam large central tank, the rear of the pump house. Tank made of 304 stainless steel (0Cr18Ni9), can be loaded with a total of foam concentrate 20000L. Vehicle fixing elastic connection, with a self-priming function with XB5 / 30-P-ZHN foam pump, aspiration time of less than 40 seconds, adjustable by changing the rotational speed of the pump outlet pressure, the foam can be tank (barrels) of the foam concentrate suction tank in the vehicle; the vehicle can be recycled and stirred tank foam liquid; DN80 through the water with liquid foam can be delivered to the liquid other equipment. As a back-up support vehicle, the main function is to store, transport as well as to provide fire foam concentrate. Vehicle novel structure, full-featured, easy to operate centralized, with strong combat service support capability, combat service support is ideal fire-fighting equipment.

Overall dimensions 11280 × 2500 × 3200mm
Full quality 38000kg
The amount of carrier liquid 20000kg
Engine power 440kW
Maximum speed of 90km / h
