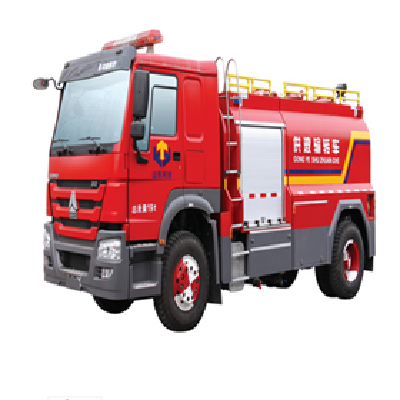

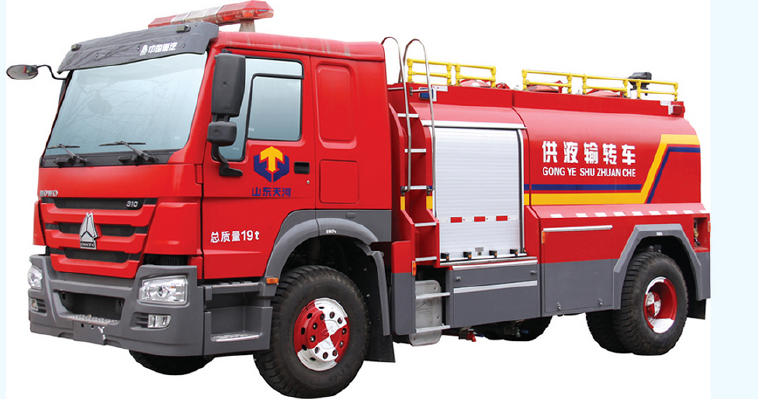

GY80 / H-type Liquid Supply Fire Vehicles

GY80 / H-type Liquid Supply Fire Vehicles

  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 Sets per Month
  • Port: China Port
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:1951-01-01
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  7580 * 2500 * 3200mm
  • Place of Origin:  SHANDONG LINYI
  • Brand Name:  TIANHE
  • Model Number:  GY80 / H
  • Weight: 19000.000 kg

Product Details
GY80 / H-type liquid supply fire engines, the use of China's heavy truck ZZ5207M4617D1 type II truck chassis modified. Tops front of the car features a pump room / equipment room, as an independent rear foam tank, the tank is made of 304 stainless steel (0Cr18Ni9), it can be loaded with a total of 8000kg of foam concentrate. XB5 equipped with self-absorption function / 10-P-ZHN foam pump, aspiration time of less than 40 seconds by changing the speed of the pump can be adjusted outlet pressure. The foam pump can load running 10 minutes (inlet shut-off during operation, the pump can empty running 10 minutes). The foam can be liquid foam tank (barrels) inside the suction tank in the vehicle; the vehicle can be recycled and stirred tank foam liquid; liquid foam can be delivered to the liquid other equipment. As a back-up support vehicle, the main function is to store, transport as well as to provide fire foam concentrate. Vehicle novel structure, full-featured, easy to operate centralized, with strong combat service support capability, combat service support is ideal fire-fighting equipment.
   Vehicle fire performance in line with GB7956 requirements; chassis through national mandatory product certification; engine emissions to meet the requirements (the country Ⅳ standard) GB17691-2005 Phase IV limits; vehicle through 3C certification and included in the Ministry of automotive new product announcement.

Overall dimensions 7580 × 2500 × 3200mm
Full quality 19000kg
The amount of carrier liquid 8000kg
Engine power 221kW
A top speed of 102 km / h (drive axle ratio of 3.36)


  • Size:  7580 * 2500 * 3200mm
  • Place of Origin:  SHANDONG LINYI
  • Brand Name:  TIANHE
  • Model Number:  GY80 / H
  • Weight: 19000.000 kg
