Specifications

For preventing and treating a variety of groups order case, the fight against terrorism, has a certain self-protection capabilities and attack capabilities of the special police vehicles.
In addition to having its own protection and fighting functions, and may have a non-lethal assault weapons or lethal weapons, communications, alarm, advocacy, monitoring and evidence collection, video surveillance,mobile command, personnel transport and other functions.

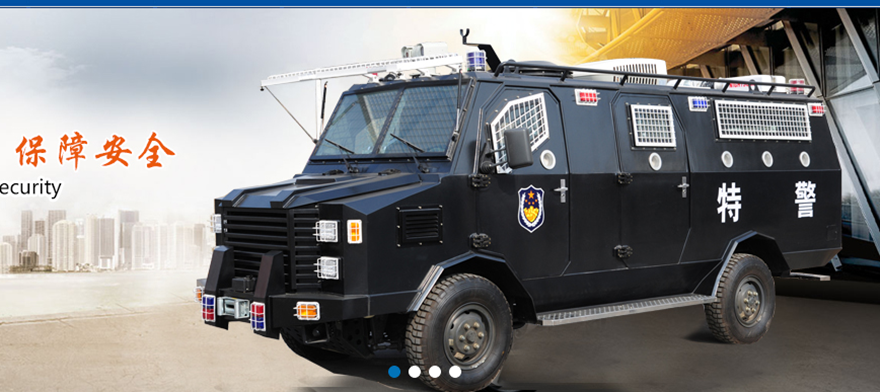

Use Nanjing Iveco NJ2054GFC2 terrain truck chassis modification,
Wheelbase: 3310mm Engine: SOFIM8140.43S4 engine Ⅳ emission standards
Maximum power: 100kw maximum speed: 105km / h
Vehicle outside dimensions: length 6160mm × 2020mm × height 2540mm wide number of passengers: 10
1, the alarm function
Round and selected high-grade explosive flash warning lights, high brightness, eye-catching warning effect; siren using split structure, with high-power loudspeakers, the sound pressure level can reach 120 decibels.
2,bulletproof
Vehicle glass is 22mm thick (three, 8 8 6) bulletproof glass, light transmission line with national standards;

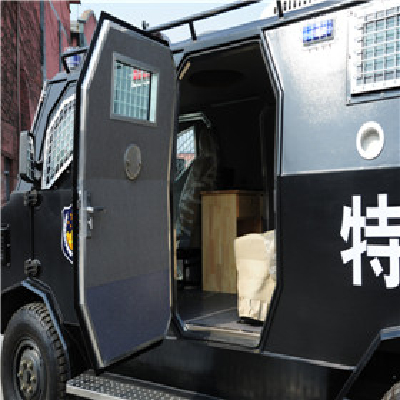

Use 2.5mm thick Shanghai Baosteel 616 (22SiMn2TiB) armored infantry fighting vehicles bullet-proof steel sheet on the vehicle cockpit doors on both sides of the box, and the box windshield binding site and fuel tanks, water tanks, and other key parts of the power supply box for protection ;
Using bulletproof tires, anti-rolling tire safety features, and to ensure that can continue to 50km / h per hour after traveling in was shot or cut 1h. According to user requirements, can be installed flat tire running gear.
The above configuration, making the car vehicle bulletproof protection level in line with GA668 in Class A (anti-79 formula 7.62mm light machine guns) requirements.
3, anti-riot and break barriers collision function
Exposed glass lamps and the installation of network riot, riot protection level in line with GA668 in grade B (using ordinary mechanical hand tools, within five minutes can not open a 615 square centimeters of the hole) requirements; front and rear bumper crash barrier-breaking level of protection accord GA668 in grade B (in the concrete floor, with the shortest possible time to start the vehicle from a standstill to promote a one-ton steel fence barrier, from time from the contact obstacles, pushing the obstacle moving distance not less than 1 meter in 1 minute, vehicles can be normal driving) requirements.
4.Attacks
The body under the windows install 11 shot holes;turret with an outlet hole cover can be flexible rotation, set the locking mechanism to prevent external open with firearms cage, can serve as escape windows use; Configure the command mirror to observe mirror, weapons sights and infrared night vision, driver night vision distance not less than 60m-80m; night sight distance of 60 to 80 percent of common operational distance; optional power distribution control expulsion missile launchers and disperse sound waves device.
The car has a store of weapons and protective equipment equipment boxes, and easily accessible; man with protective gear as needed. Individual protective gear including suits of armor, bulletproof shields, helmets and bulletproof arrest grappling gloves.
5, command vehicle wireless monitoring system
Can achieve vehicle DVR, wireless video surveillance, GPS positioning, intercom and other functions, the higher command staff through the whole record vehicle driving state data transmission, multi-angle real-time monitoring and recording inside and outside the car audio and video information, you can keep abreast of the distal end operational status and position of the vehicle, centralized management through regulatory dispatch command center, the first time to take measures, promptly issued dispatching command, respond to emergencies. Major equipment
(1) Car DVR: vehicle audio and video surveillance signal acquisition, storage, transmission and output.
(2) Car Lift Lighting PTZ Camera:Keep roof, lifting height of 2.5 meters, for collecting the vehicle 360 degrees horizontal and vertical 180-degree surrounding traffic information on the screen at night with infrared camera functions.
(3) Car PTZ Controller
(4) Car Dome Camera
6, other configurations
(1) DL-1800R Car overhead air conditioning (Dingli brand 24V);
(2) sunroof (with fan);
(3) Before installing vehicle 7.5 tons electric winch for self-rescue vehicle.
