- Size: 9485 * 2480 * 3480mm
- Place of Origin: SHANDONG LINYI
- Brand Name: TIANHE
- Model Number: PM (SG) 100/L
- Weight: 22000.000 kg
Product Details

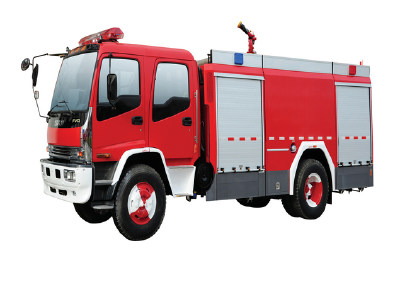

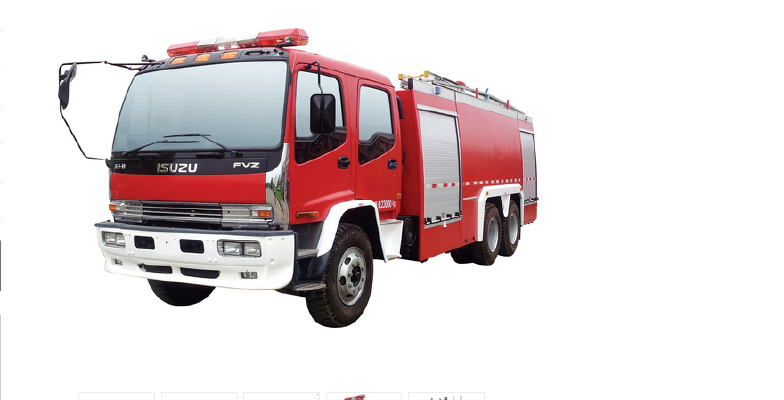

PM (SG) 100 /L foam fire truck, the Department of Qingling Motors Co. Ltd. QL1250DPFZY type II truck chassis converted. By firemen vehicle passenger compartment and rear body of two parts. Firefighters room is equipped with top lights and electronic siren, to highlight the distinctive emblem and sound enforcement of fire safety tasks. Front section is pumping station, it is the central carrier liquid tank, the rear is equipment boxes. The carrier liquid tank for high-quality carbon steel, carrying water 7000kg (PM100 / L) / 10000 kg (SG100 / L), foam liquid 3000kg (PM100 / L). With CB10 / 60 car fire pump, flow rate 60L / s, PL48-64D type water / foam fire monitor dual-use flow rate 48 L / s (SG100 / L as PS30-50 type fire water cannons, flow rate 50 L / s ).
Vehicle fire performance in line with GB7956 requirements; chassis through national mandatory product certification; engine emissions to meet the requirements (the country Ⅳ standard) GB17691-2005 Phase IV limits; vehicle through 3C certification and included in the Ministry of automotive new product announcement.
Overall dimensions 9485 × 2480 × 3480mm
Full quality 22000kg
The amount of carrier liquid foam car: water 7000kg, 3000 kg class B foam
Water tankers:Water 10000kg
Engine rated power 206kW
Maximum speed of 90 km / h
