Product Descriptions

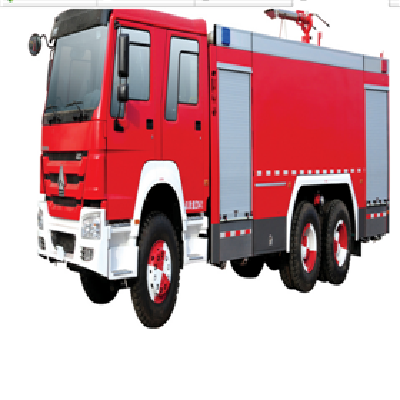

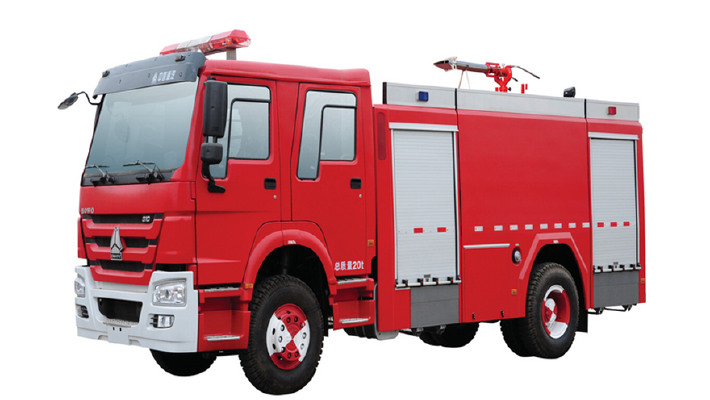

PM (SG) 150 / H-type foam fire using Ho Lok ZZ5347V4647D1 country Ⅳ type chassis converted. Extended by the Firefighter vehicle passenger compartment and the body of two parts, the front portion of the vehicle body is equipment boxes, the middle is the carrier liquid tank, the rear of the pump house. The carrier liquid tank for high-quality carbon steel, high-strength chassis and elastic connections, PM150H carrying water 12000kg, foam 3000kg; SG150H carrying water 15000 kg, with a low-pressure fire pump CB20.10 / 30.60, roof-mounted PL48-64D (PM150 / H) or PS30-50 (SG150 / H) car with artillery fire.
The greatest feature of the car is carrying a large amount of liquid, also has big power, high speed, centralized operation, easy maintenance, beautiful appearance and other characteristics. It can be widely used in public security fire brigades, petrochemical, factories and mines and ports, docks and other places, large-scale fighting oil fires and general material fire, it is ideal for large-scale fire-fighting equipment.
Vehicle fire performance in line with GB7956 requirements; chassis through national mandatory product certification; engine emissions to meet the requirements (the country Ⅳ standard) GB17691-2005 Phase IV limits; vehicle through 3C certification and included in the Ministry of automotive new product announcement.

Overall dimensions 10230 × 2500 × 3600mm
The maximum total mass 31000kg
The amount of carrier liquid foam car water 12000kg, foam 3000 kg; the vehicle-mounted water tank 15000 kg
Maximum speed of 80km / h
